Description
A Series Roller Chains with Straight Side Plates
A series Roller Chain with Straight Side Plates are popular in many industries. They can be used for many different applications, including bottling, car washes, citrus processing, packaging, refineries, and seafood processing. Here’s a brief overview of their main uses. To get the most out of these chains, choose a chain with straight side plates in a straight-side configuration. Then, check out the rest of their specifications to ensure that they meet your needs.
Ever-power is known for its fatigue resistance. The deep wasted link plates improve the chain pitch, which in turn reduces stress and fatigue. Precision pins are induction hardened to increase chain life. Pre-stretching ensures proper component alignment and optional spin riveting increases link plate security. Whether the application calls for high-speed applications or light-duty applications, Ever-power has a chain for your needs.

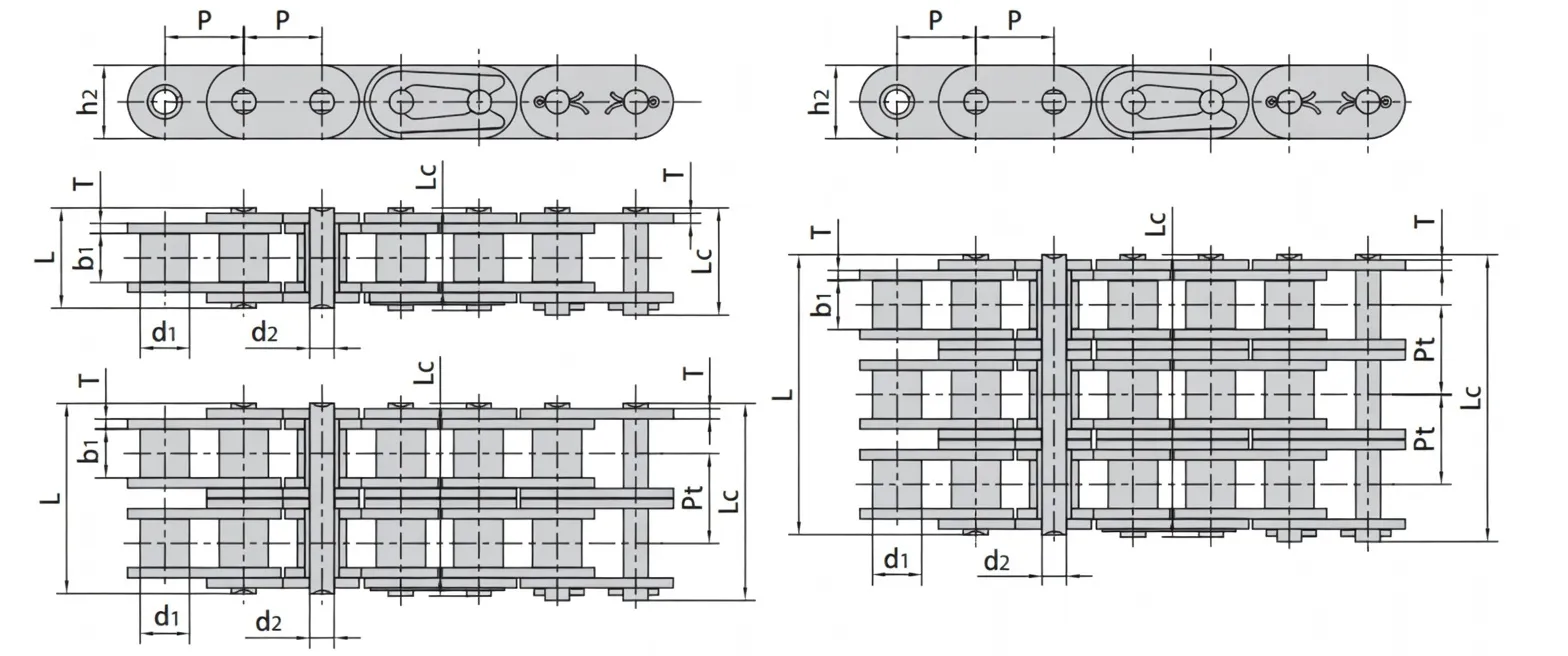

Specifications of A Series Roller Chains with Straight Side Plates
C-type roller chain has straight side plates instead of figure eight-shaped plates and is slightly heavier than the standard type. Its straight side plates increase strength, fatigue resistance, and working life. C-type roller chains are typically used in conveyor applications with flat side plates. The chain is available in two standard types, the ISO British standard, and the ANSI double pitch. To determine which type of chain you need, consult the specifications of your conveyor application.
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Pt | Q min | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
| *C35-1 | 9.525 | 5.08 | 4.77 | 3.58 | 13.3 | 14.3 | 9.00 | 1.30 | – | 7.9/1795 | 10.8 | 0.41 | |
| C08A-1 | C40-1 | 12.700 | 7.95 | 7.85 | 3.96 | 16.6 | 18.8 | 12.00 | 1.50 | – | 14.1/3273 | 17.5 | 0.73 |
| C10A-1 | C50-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 23.3 | 15.09 | 2.03 | – | 22.2/5045 | 29.4 | 1.23 |
| C12A-1 | C60-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18.0/18.2 | 2.42 | – | 31.8/7227 | 41.5 | 1.81/1.83 |
| C16A-1 | C80-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.00 | 3.25 | – | 56.7/12886 | 69.4 | 3.09 |
| C20A-1 | C100-1 | 31.750 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | – | 88.5/20114 | 109.2 | 4.56 |
| C24A-1 | C120-1 | 38.100 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | – | 127.0/28864 | 156.3 | 6.86 |
| C28A-1 | C140-1 | 44.450 | 25.40 | 25.22 | 12.70 | 54.4 | 59.0 | 41.00 | 5.60 | – | 172.4/39182 | 212.0 | 8.49 |
| C32A-1 | C160-1 | 50.800 | 28.58 | 31.55 | 14.27 | 64.8 | 69.6 | 47.80 | 6.40 | – | 226.8/51545 | 278.9 | 11.50 |
| C08A-2 | C40-2 | 12.700 | 7.95 | 7.85 | 3.96 | 31.0 | 33.2 | 12.00 | 1.50 | 14.38 | 28.2/6409 | 35.9 | 1.43 |
| C10A-2 | C50-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.9 | 41.4 | 15.09 | 2.03 | 18.11 | 44.4/10091 | 58.1 | 2.42 |
| C12A-2 | C60-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.8 | 51.1 | 18.0/18.2 | 2.42 | 22.78 | 63.6/14455 | 82.1 | 3.58/3.62 |
| C16A-2 | C80-2 | 25.400 | 15.88 | 15.75 | 7.92 | 62.7 | 65.8 | 24.00 | 3.25 | 29.29 | 113.4/25773 | 141.8 | 6.12 |
| C20A-2 | C100-2 | 31.750 | 19.05 | 18.90 | 9.53 | 76.4 | 80.5 | 30.00 | 4.00 | 35.76 | 177.0/40227 | 219.4 | 9.08 |
| C24A-2 | C120-2 | 38.100 | 22.23 | 25.22 | 11.10 | 95.8 | 99.7 | 35.70 | 4.80 | 45.44 | 254.0/57727 | 314.9 | 13.60 |
| C28A-2 | C140-2 | 44.450 | 25.40 | 25.22 | 12.70 | 103.3 | 107.9 | 41.00 | 5.60 | 48.87 | 344.8/78364 | 427.5 | 16.86 |
| C32A-2 | C160-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.3 | 128.1 | 47.80 | 6.40 | 58.55 | 453.6/103091 | 562.4 | 22.90 |
| C08A-3 | C40-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.4 | 47.6 | 12.00 | 1.50 | 14.38 | 42.3/9614 | 50.0 | 2.14 |
| C10A-3 | C50-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.0 | 59.5 | 15.09 | 2.03 | 18.11 | 66.6/15136 | 77.8 | 3.62 |
| C12A-3 | C60-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.5 | 73.9 | 18.0/18.2 | 2.42 | 22.78 | 95.4/21682 | 111.1 | 5.36/5.41 |
| C16A-3 | C80-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.7 | 95.1 | 24.00 | 3.25 | 29.29 | 170.1/38659 | 198.4 | 9.10 |
| C20A-3 | C100-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.2 | 116.3 | 30.00 | 4.00 | 35.76 | 265.5/60341 | 309.6 | 13.60 |
| C24A-3 | C120-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.4 | 145.2 | 35.70 | 4.80 | 45.44 | 381.0/86591 | 437.2 | 20.43 |
| C28A-3 | C140-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.2 | 156.8 | 41.00 | 5.60 | 48.87 | 517.2/117545 | 593.3 | 25.23 |
| C32A-3 | C160-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.8 | 186.6 | 47.80 | 6.40 | 58.55 | 680.4/154636 | 780.6 | 34.19 |
Applications of Straight Side Plate Chains
The C-type A series roller chain with straight sides is manufactured to the same standards as ANSI standard chains. These chains are typically used in conveyor applications and have the same dimensions as ANSI-standard roller chains. The C-type design is typically heavier than standard roller chains, but increases fatigue resistance and working life. It is available in ANSI and ISO British standards. It is recommended that you check the product specification to make sure it meets your specific requirements.
Straight side plate chains are often used in bottling, car washing, citrus processing, packaging, and material handling applications. They are also commonly used in refineries, poultry processing, and seafood processing. They are fabricated using full-strength connecting links and are available in several sizes. They have high-tensile strength and can withstand heavy loads. They can also handle a wide range of temperatures and are designed for high-speed operation.
Chains and Sprockets
Apart from roller chains, there are several types of chains and sprockets to choose from. Some are narrow, others are wide, and each has a different pitch diameter and sprocket bore. For example, chains with large pitch diameters require sprockets with larger teeth than those with smaller roller-pin centers. Ultimately, you should choose sprockets that fit the chain and the machine properly.
Both types of chains and sprockets are highly reliable and durable products. A steel finish is common. They can be sized for specific applications. There are also several different sizes of sprockets, which will depend on the amount of torque they must exert. If you need to choose a sprocket with an ANSI number, you should select the one that meets the exact requirements of your machine. Chains and sprockets are made of high-quality materials and are finished to precise dimensional tolerances.
Metal sprockets have different designs and can be used for both types of applications. Steel split sprockets are easy to install and remove. They can also be made of aluminum. Metal split sprockets are commonly made from 304-grade stainless steel. Stainless steel sprockets are available for extremely corrosive environments.
As a professional transmission parts manufacturer and supplier in China, HZPT offers a variety of high-quality drive chains and sprockets for sale. Contact now！
