B Series Roller Chains with Straight Side Plates
The straight-plate type conveyor chain offers strength and long working life. These roller chains are available in both ISO British and ANSI standards. They are suitable for both horizontal and vertical applications. B-series double-pitch straight-plate conveyor chains can be purchased here from Ever-power, a leading manufacturer and supplier in China. To order B series roller chains with straight side plates or other transmission chains, contact us now and get more information! We’re looking forward to serving you!

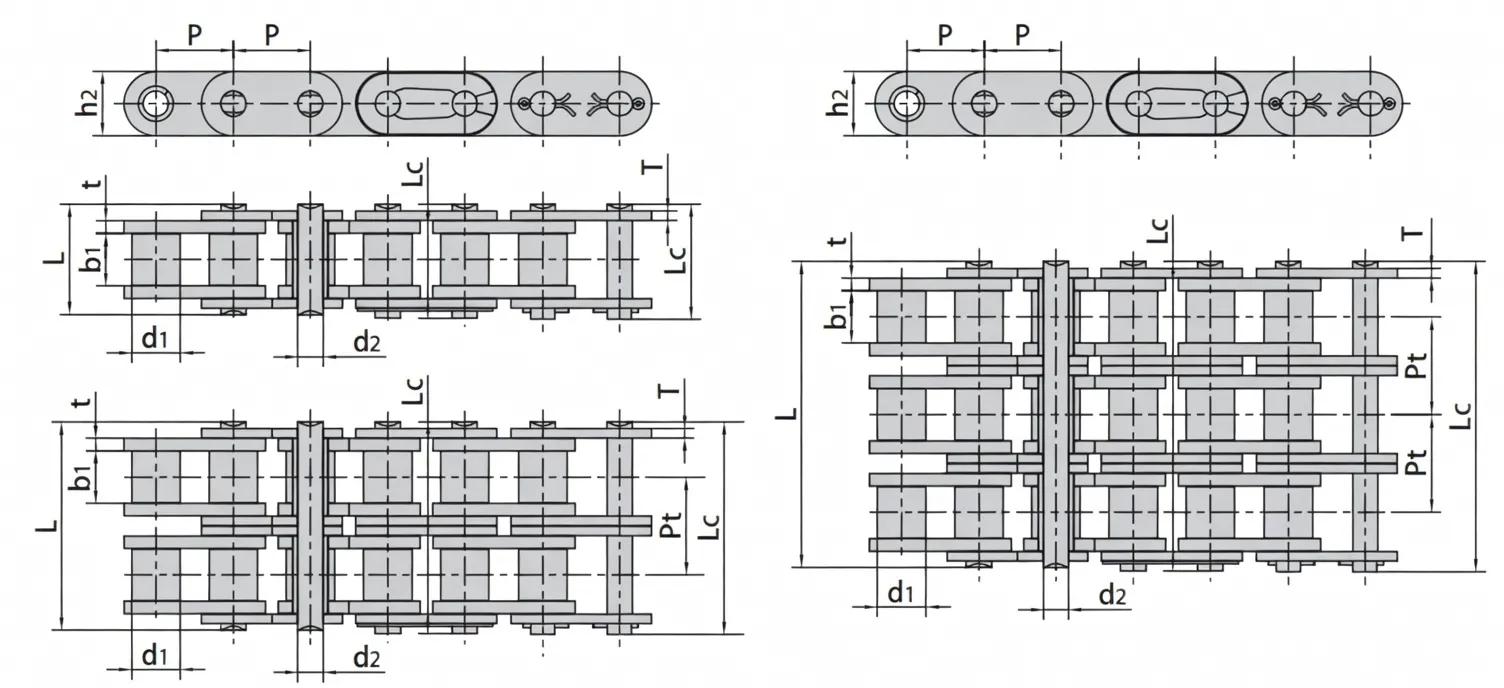

Specifications of B Series Roller Chains with Straight Side Plates
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| C08B-1 | 12 .700 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | – | 18.0/4091 | 19.5 | 0.80 |
| C10B-1 | 15 .875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | – | 22.4/5091 | 27.9 | 1.06 |
| C12B-1 | 19 .050 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | – | 29.0/6591 | 32.2 | 1.32 |
| C16B-1 | 25 .400 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0/24.0 | 4.15/3.1 | – | 60.0/13636 | 72.8 | 3.08/3.49 |
| C20B-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.5/3.5 | – | 95.0/21591 | 106.7 | 4.16 |
| C24B-1 | 38 .100 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | – | 160.0/36364 | 178.0 | 7.47 |
| C28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | – | 200.0/45455 | 222.0 | 9.90 |
| C32B-1 | 50 .800 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.0 | 7.0/6.0 | – | 250.0/56818 | 277.5 | 10.45 |
| C08B-2 | 12 .700 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.60 | 13.92 | 32.0/7273 | 38.7 | 1.45 |
| C10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.70 | 16.59 | 44.5/10114 | 57.8 | 2.00 |
| C12B-2 | 19 .050 | 12.07 | 11.68 | 5.72 | 42.0 | 44.7 | 16.0 | 1.85 | 19.46 | 57.8/13136 | 66.1 | 2.62 |
| C16B-2 | 25 .400 | 15.88 | 17.02 | 8.28 | 68.0 | 71.0 | 21.0/24.0 | 4.15/3.1 | 31.88 | 106.0/24091 | 133.0 | 6.10/6.92 |
| C20B-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 170.0/38636 | 211.2 | 8.23 |
| C24B-2 | 38 .100 | 25.40 | 25.40 | 14.63 | 101.7 | 106.2 | 33.2 | 6.0/4.8 | 48.36 | 280.0/63636 | 319.2 | 14.77 |
| C28B-2 | 44 .450 | 27.94 | 30.99 | 15.90 | 124.6 | 129.1 | 36.7 | 7.5/6.0 | 59.56 | 360.0/81818 | 406.8 | 19.82 |
| C32B-2 | 50 .800 | 29.21 | 30.99 | 17.81 | 124.6 | 129.6 | 42.0 | 7.0/6.0 | 58.55 | 450.0/102273 | 508.5 | 20.94 |
| C08B-3 | 12 .700 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.60 | 13.92 | 47.5/10795 | 57.8 | 2.10 |
| C10B-3 | 15 .875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.70 | 16.59 | 66.7/15159 | 84.5 | 2.87 |
| C12B-3 | 19 .050 | 12.07 | 11.68 | 5.72 | 61.5 | 64.2 | 16.0 | 1.85 | 19.46 | 86.7/19705 | 101.8 | 3.89 |
| C16B-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.8 | 102.9 | 21.0/24.0 | 4.15/3.1 | 31.88 | 160.0/36364 | 203.7 | 9.12/10.34 |
| C20B-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 36.45 | 250.0/56818 | 290.0 | 11.34 |
| C24B-3 | 38 .100 | 25.40 | 25.40 | 14.63 | 150.1 | 154.6 | 33.2 | 6.0/4.8 | 48.36 | 425.0/96591 | 493.0 | 22.10 |
| C28B-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.2 | 188.7 | 36.7 | 7.5/6.0 | 59.56 | 530.0/120454 | 609.5 | 29.64 |
| C32B-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42.0 | 7.0/6.0 | 58.55 | 670.0/152273 | 770.5 | 31.27 |
Ever-Power B Series Roller Chains with Straight Side Plates
EVER POWER TRANSMISSION produces roller chains, conveyor chains, leaf chains, industrial sprockets and special chains. The B series Roller Chain with Straight Side Plates has two pitch types: single and double. Both pitches have the same static strength and length. A double pitch chain is shorter and lighter than a single pitch chain. Both pitch types are suited for similar applications.
Power transmission chains work with sprockets to convert electrical energy from a motor to mechanical energy. Idler sprockets take up slack in long chains, and are often used in applications with high vibration. Roller chains are generally used for lifting or horizontal applications. In addition to the chain itself, the company also manufactures chain links to extend the length of chains and replace worn or damaged links. Leaf chains, on the other hand, feature clevis connectors to anchor the chain end to the clevis.

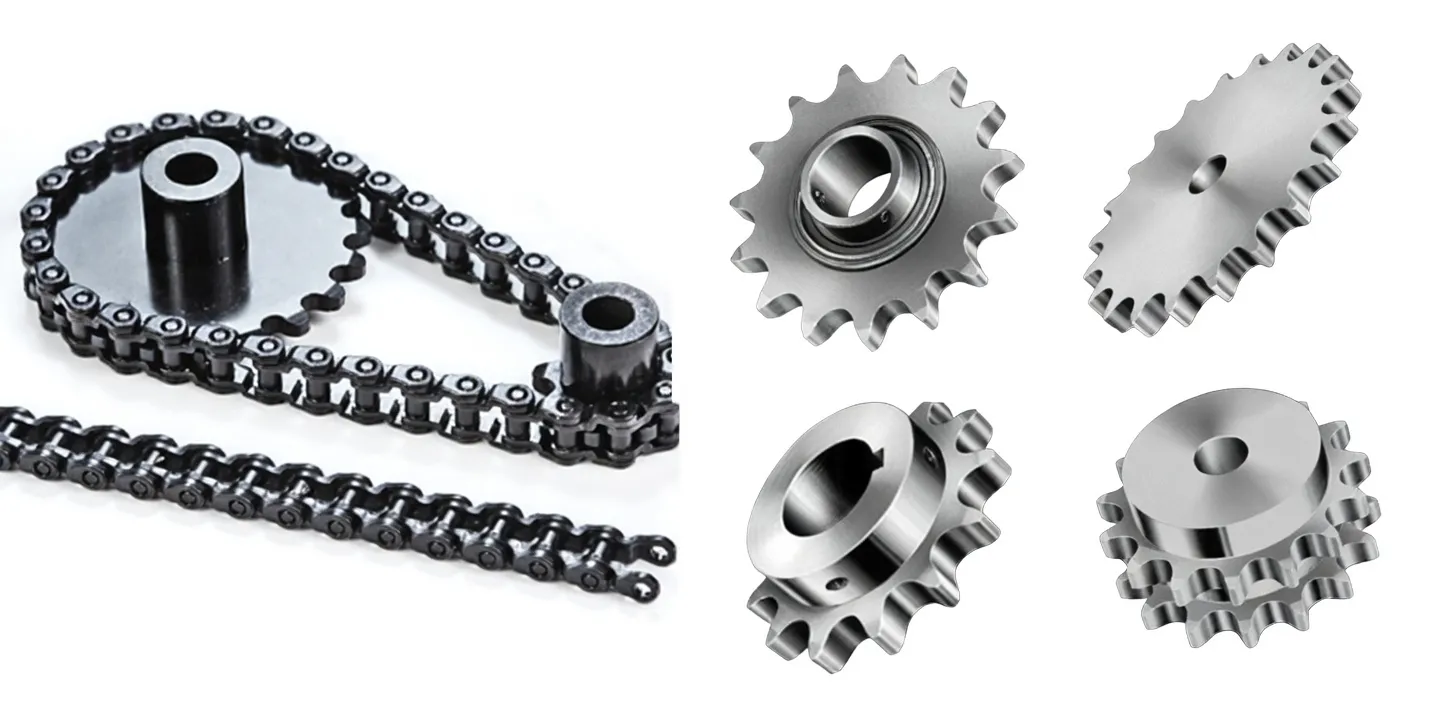

Chains and Sprockets
Apart from roller chains, there are several types of chains and sprockets to choose from. Some are narrow, others are wide, and each has a different pitch diameter and sprocket bore. For example, chains with large pitch diameters require sprockets with larger teeth than those with smaller roller-pin centers. Ultimately, you should choose sprockets that fit the chain and the machine properly.
Both types of chains and sprockets are highly reliable and durable products. A steel finish is common. They can be sized for specific applications. There are also several different sizes of sprockets, which will depend on the amount of torque they must exert. If you need to choose a sprocket with an ANSI number, you should select the one that meets the exact requirements of your machine. Chains and sprockets are made of high-quality materials and are finished to precise dimensional tolerances.
Metal sprockets have different designs and can be used for both types of applications. Steel split sprockets are easy to install and remove. They can also be made of aluminum. Metal split sprockets are commonly made from 304-grade stainless steel. Stainless steel sprockets are available for extremely corrosive environments.
As a professional transmission parts manufacturer and supplier in China, HZPT offers a variety of high-quality drive chains and sprockets for sale. Contact now！
